#include <IVSmokeGridLibrary.h>

Inheritance diagram for UIVSmokeGridLibrary:

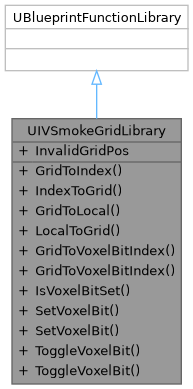

Collaboration diagram for UIVSmokeGridLibrary:

Static Public Member Functions
static FORCEINLINE int32	GridToIndex (const FIntVector &GridPos, const FIntVector &Resolution)

static FORCEINLINE FIntVector	IndexToGrid (int32 Index, const FIntVector &Resolution)

static FORCEINLINE FVector	GridToLocal (const FIntVector &GridPos, float VoxelSize, const FIntVector &CenterOffset)

static FORCEINLINE FIntVector	LocalToGrid (const FVector &LocalPos, float VoxelSize, const FIntVector &CenterOffset, const FIntVector &Resolution)

static FORCEINLINE int32	GridToVoxelBitIndex (const FIntVector &GridPos, const FIntVector &Resolution)

static FORCEINLINE int32	GridToVoxelBitIndex (int32 Y, int32 Z, int32 ResolutionY)

static FORCEINLINE bool	IsVoxelBitSet (const TArray< uint64 > &VoxelBitArray, const FIntVector &GridPos, const FIntVector &Resolution)

static FORCEINLINE void	SetVoxelBit (TArray< uint64 > &VoxelBitArray, int32 Index, const FIntVector &Resolution, bool bValue)

static FORCEINLINE void	SetVoxelBit (TArray< uint64 > &VoxelBitArray, const FIntVector &GridPos, const FIntVector &Resolution, bool bValue)

static FORCEINLINE void	ToggleVoxelBit (TArray< uint64 > &VoxelBitArray, int32 Index, const FIntVector &Resolution)

static FORCEINLINE void	ToggleVoxelBit (TArray< uint64 > &VoxelBitArray, const FIntVector &GridPos, const FIntVector &Resolution)

Static Public Attributes
static const FIntVector	InvalidGridPos

Detailed Description

Utility library for smoke grid calculations and voxel bit operations.

Definition at line 13 of file IVSmokeGridLibrary.h.

Member Function Documentation

◆ GridToIndex()

static FORCEINLINE int32 UIVSmokeGridLibrary::GridToIndex	(	const FIntVector &	GridPos,
		const FIntVector &	Resolution
	)

inlinestatic

3D grid coordinate to 1D index.

Parameters

GridPos	3D grid coordinate.
Resolution	3D grid resolution.

Returns: 1D flattened index

Definition at line 29 of file IVSmokeGridLibrary.h.

◆ GridToLocal()

static FORCEINLINE FVector UIVSmokeGridLibrary::GridToLocal	(	const FIntVector &	GridPos,
		float	VoxelSize,
		const FIntVector &	CenterOffset
	)

inlinestatic

Converts 3D grid coordinate to local space position.

Parameters

GridPos	3D grid coordinate.
VoxelSize	Size of each voxel.
CenterOffset	Grid center offset.

Returns: Local space position.

Definition at line 67 of file IVSmokeGridLibrary.h.

◆ GridToVoxelBitIndex() [1/2]

static FORCEINLINE int32 UIVSmokeGridLibrary::GridToVoxelBitIndex	(	const FIntVector &	GridPos,
		const FIntVector &	Resolution
	)

inlinestatic

Converts 3D grid coordinate to voxel bit index.

Parameters

GridPos	3D grid coordinate.
Resolution	3D grid resolution.

Returns: Voxel bit index.

Definition at line 117 of file IVSmokeGridLibrary.h.

◆ GridToVoxelBitIndex() [2/2]

static FORCEINLINE int32 UIVSmokeGridLibrary::GridToVoxelBitIndex	(	int32	Y,
		int32	Z,
		int32	ResolutionY
	)

inlinestatic

Converts Y and Z coordinates to voxel bit index.

Parameters

Y	Y coordinate.
Z	Z coordinate.
ResolutionY	Y resolution.

Returns: Voxel bit index.

Definition at line 130 of file IVSmokeGridLibrary.h.

◆ IndexToGrid()

static FORCEINLINE FIntVector UIVSmokeGridLibrary::IndexToGrid	(	int32	Index,
		const FIntVector &	Resolution
	)

inlinestatic

1D flattened index to 3D grid coordinate.

Parameters

Index	1D flattened index.
Resolution	3D grid resolution.

Returns: 3D grid coordinate.

Definition at line 42 of file IVSmokeGridLibrary.h.

◆ IsVoxelBitSet()

static FORCEINLINE bool UIVSmokeGridLibrary::IsVoxelBitSet	(	const TArray< uint64 > &	VoxelBitArray,
		const FIntVector &	GridPos,
		const FIntVector &	Resolution
	)

inlinestatic

Checks if a voxel occupancy bit is set at the given 3D grid position. Internally, X is stored as a bit index in a uint64, while Y and Z are mapped to the array index.

Parameters

VoxelBitArray	Bit-packed voxel occupancy array (uint64 per YZ slice).
GridPos	3D grid coordinate.
Resolution	3D grid resolution (each axis < 64).

Returns: True if the voxel bit is set, false otherwise.

Definition at line 144 of file IVSmokeGridLibrary.h.

◆ LocalToGrid()

static FORCEINLINE FIntVector UIVSmokeGridLibrary::LocalToGrid	(	const FVector &	LocalPos,
		float	VoxelSize,
		const FIntVector &	CenterOffset,
		const FIntVector &	Resolution
	)

inlinestatic

Converts local space position to 3D grid coordinate.

Parameters

LocalPos	Local space position.
VoxelSize	Size of each voxel.
CenterOffset	Grid center offset.
Resolution	3D grid resolution.

Returns: 3D grid coordinate, or InvalidGridPos if out of bounds.

Definition at line 86 of file IVSmokeGridLibrary.h.

◆ SetVoxelBit() [1/2]

static FORCEINLINE void UIVSmokeGridLibrary::SetVoxelBit	(	TArray< uint64 > &	VoxelBitArray,
		const FIntVector &	GridPos,
		const FIntVector &	Resolution,
		bool	bValue
	)

inlinestatic

Sets a voxel bit value at the given 3D grid position. Internally, X is stored as a bit index in a uint64, while Y and Z are mapped to the array index.

Parameters

VoxelBitArray	Bit-packed voxel occupancy array (uint64 per YZ slice).
GridPos	3D grid coordinate.
Resolution	3D grid resolution (each axis < 64).
bValue	Value to set (true or false).

Definition at line 184 of file IVSmokeGridLibrary.h.

◆ SetVoxelBit() [2/2]

static FORCEINLINE void UIVSmokeGridLibrary::SetVoxelBit	(	TArray< uint64 > &	VoxelBitArray,
		int32	Index,
		const FIntVector &	Resolution,
		bool	bValue
	)

inlinestatic

Sets a voxel bit value at the given 1D index.

Parameters

VoxelBitArray	Bit-packed voxel occupancy array (uint64 per YZ slice).
Index	1D flattened index.
Resolution	3D grid resolution (each axis < 64).
bValue	Value to set (true or false).

Definition at line 169 of file IVSmokeGridLibrary.h.

◆ ToggleVoxelBit() [1/2]

static FORCEINLINE void UIVSmokeGridLibrary::ToggleVoxelBit	(	TArray< uint64 > &	VoxelBitArray,
		const FIntVector &	GridPos,
		const FIntVector &	Resolution
	)

inlinestatic

Toggles a voxel bit value at the given 3D grid position. Internally, X is stored as a bit index in a uint64, while Y and Z are mapped to the array index.

Parameters

VoxelBitArray	Bit-packed voxel occupancy array (uint64 per YZ slice).
GridPos	3D grid coordinate.
Resolution	3D grid resolution (each axis < 64).

Definition at line 229 of file IVSmokeGridLibrary.h.

◆ ToggleVoxelBit() [2/2]

static FORCEINLINE void UIVSmokeGridLibrary::ToggleVoxelBit	(	TArray< uint64 > &	VoxelBitArray,
		int32	Index,
		const FIntVector &	Resolution
	)

inlinestatic

Toggles a voxel bit value at the given 1D index.

Parameters

VoxelBitArray	Bit-packed voxel occupancy array (uint64 per YZ slice).
Index	1D flattened index.
Resolution	3D grid resolution (each axis < 64).

Definition at line 215 of file IVSmokeGridLibrary.h.

Member Data Documentation

◆ InvalidGridPos

const FIntVector UIVSmokeGridLibrary::InvalidGridPos

static

Invalid grid pos (-1, -1, -1)

Definition at line 19 of file IVSmokeGridLibrary.h.

The documentation for this class was generated from the following files:

plugins/UE5.7/IVSmoke/Source/IVSmoke/Public/IVSmokeGridLibrary.h
plugins/UE5.7/IVSmoke/Source/IVSmoke/Private/IVSmokeGridLibrary.cpp
