Custom Material Guide

IVSmoke renders smoke through a built-in composite shader by default. If you want full control over how the smoke is blended with the scene, you can supply your own Post Process material and register it via a Visual Material Preset. This guide walks through creating the material, wiring up the IVSmoke texture nodes, and registering the preset in Project Settings.


1. Creating the Material

Create a new material and set its Material Domain to Post Process. Inside the material, you define how the Scene and Smoke textures are mixed.

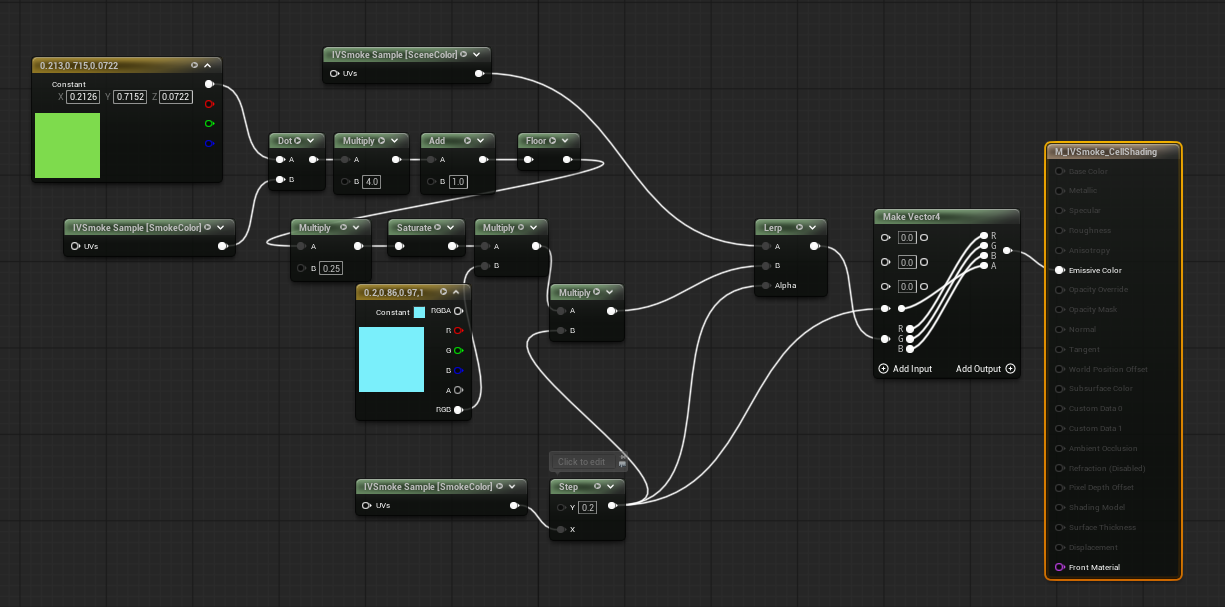

Demo custom material graph

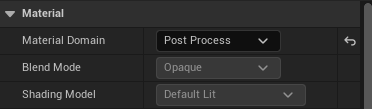

Material Domain set to Post Process

IVSmoke_TextureSample Node

Search for IVSmoke_TextureSample in the material palette and add it to your graph. This node gives you access to the smoke render targets.

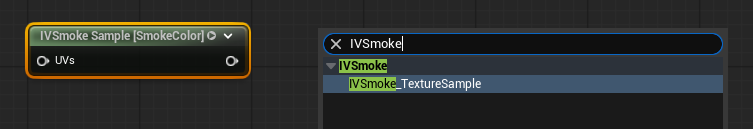

IVSmoke_TextureSample node

Select the node and choose a Texture Type:

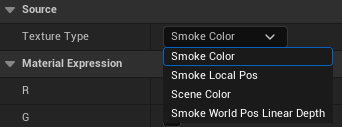

Texture Type options
Texture Type Channels Description
SmokeColor (R, G, B, A) Smoke albedo color + smoke alpha
SmokeLocalPos (X, Y, Z, 0) Smoke local position
SceneColor (R, G, B, A) Scene color behind the smoke
SmokeWorldPosLinearDepth (X, Y, Z, Depth) Smoke world position + linear depth

Internally, these textures are mapped to PostProcessInput[0, 1, 2, 4] on the SceneTexture node.

Use the Color Mask option to select which channels the node outputs:

Color Mask options

2. Creating a Visual Material Preset

The preset is a Data Asset that links your material to the IVSmoke render pipeline.

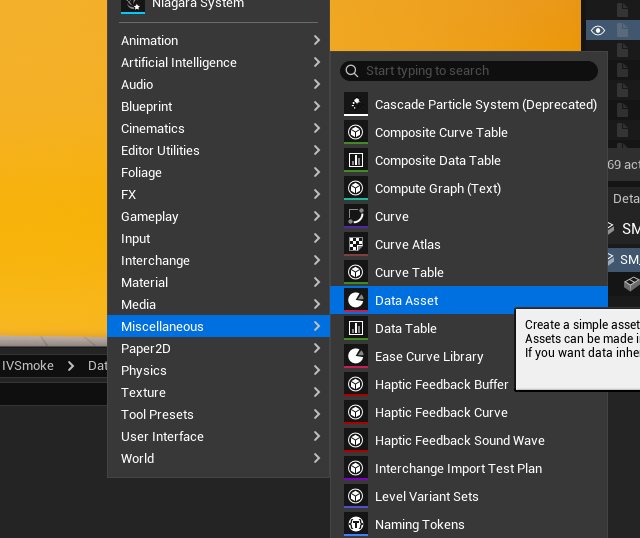

  1. In the Content Drawer, right-click and select Miscellaneous > Data Asset.

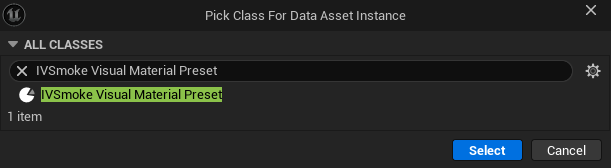

  2. Choose IVSmoke Visual Material Preset as the class.

Preset Properties

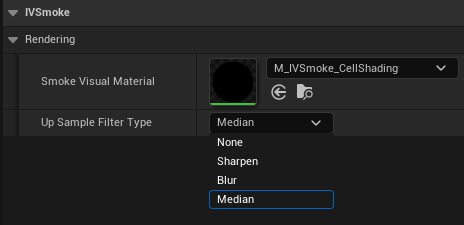

Visual Material Preset properties
Property Description
Smoke Visual Material Slot for your custom smoke material. If empty, the built-in composite shader is used.
UpSample Filter Type Filter applied after upsampling the ray marching result. See options below.

UpSample Filter Type options:

  • None — No filtering.
  • Sharpen — Enhances edges and details, making smoke contours more defined.
  • Blur — Softens with Gaussian blur for a smooth, natural look.
  • Median — Removes noise while preserving edges.

3. Registering the Preset

Open Edit > Project Settings and search for IVSmoke. In the Rendering section, assign your preset to the Smoke Visual Material Preset slot.

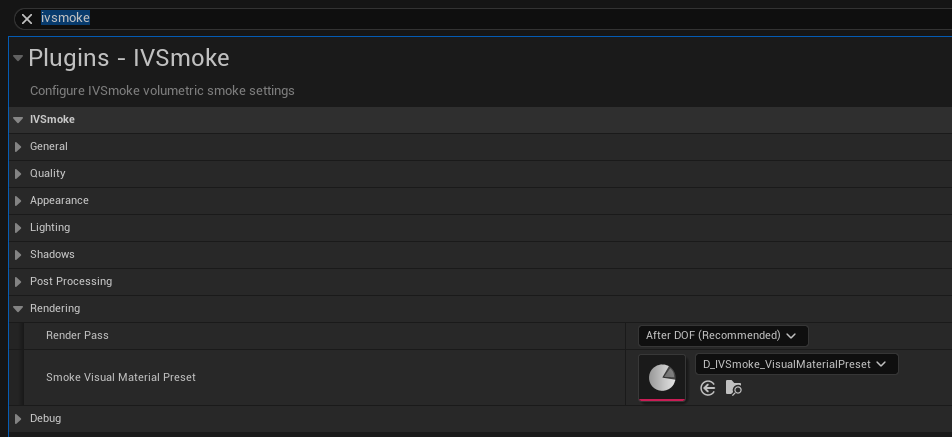

Project Settings — Smoke Visual Material Preset slot

Example

A working demo preset ships with the plugin:

Plugins > IVSmoke > DataAssets > D_IVSmoke_VisualMaterialPreset

Demo preset result
Demo material option setup
